The unique automatic, expandable cabinet according to the requirements, able to prepare the orders without the request of the operator. The system is composed by initial module who includes the pick-up/storage handle manipulator, management software and 160 spaces for reels of 7" and by additional modules where there are spaces for 900 reels of 7" or 160 reels up to 15", Jedec trays or containers for PTH components, screws, printers and many more.
Composed by:
● n.2 racks for components
● Chamber for pick-up/storage of the components
● Space for lodging 160 reels of 7" up with pitch till 16mm.
● Automatic arm with handle manipulator for components pick-up/storage and bar code reader
● Manual recognizable system through barcode for the management of the material location in the cabinet, PC, software for orders management, printer, 19" touch screen monitor
● Ext. dimensions: 1.155 l x 1.190 p x 2.663 h mm.
● Weight: 263 kg

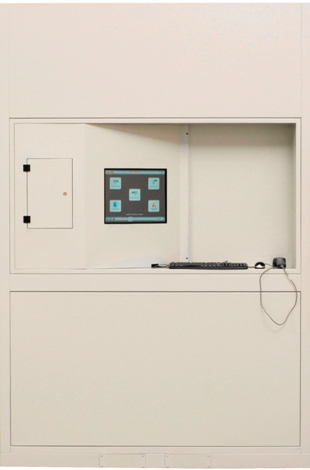

Main Modul - lateral sight
Capacity:
● FREEDOM 630
630 reels diameter 7"and height up to 16mm
● FREEDOM 765
315 reels diameter 7" and height up to 16mm and 450 reels diameter 7" height 8mm
● FREEDOM 900
900 reels diameter 7"and height 8mm
● Ext. dimensions: 1.780 x 1.190 x H 2.663mm
● Weight: 371 kg

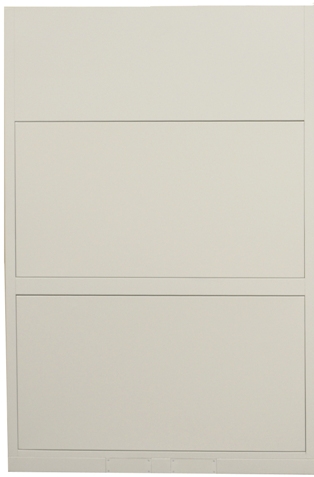

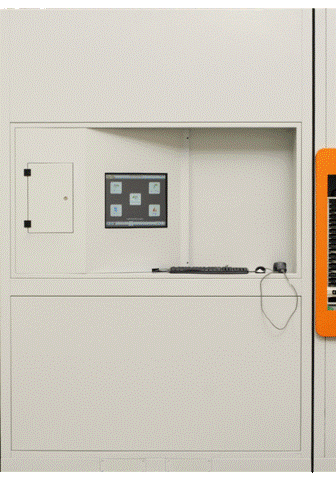

Freedom and Main Module - lateral side sight
Composed by:
● Module for storage of:
1) Reels from 7" to 15" with pitch up to 32mm (up to 65mm on request)
2) Jedec trays for QFP/BGA
3) Printed PCBs
4) PTH components
4) Screws and mechanical parts
●TRAY 160
160 trays for reels with diameter up to 15" and height up to 32 mm or tray for QFP/BGA or PTH components or various material in proper containers
●TRAY 228
80 trays for reels with diameter up to 15" and height up to 32 mm or tray per QFP/BGA or PTH components or various material in proper containers and 148 shelves for reels diameter up to 15" and height up to 12 mm or tray for QFP/BGA
●TRAY 296
296 trays for reels diameter up to 15" and height until 12 mm or tray for QFP/BGA
● Ext. dimensions: 1.780 x 1.190 x H 2.663mm
● Weight: 371kg
Composed by:
●Module for storage of:
1) Reels from 7" to 15" with pitch up to 32mm
2) Jedec trays for QFP/BGA
3) Printed PCBs
4) PTH components
5) Screws and mechanical parts
● MIX 395
315 reels with diameter 7" and height 16mm; 80 trays for reels with diameter up to 15" and height up to 32 mm or tray per QFP/BGA or PTH components or various materials in proper containers
● MIX 463
315 reels with diameter 7" and height 16mm; 148 trays for reels with diameter up to 15" and height up to 12 mm or tray for QFP/BGA
● MIX 530
450 reels with diameter 7" and height 8mm; 80 trays for reels with diameter up to 15" and height up to 32 mm or tray per QFP/BGA or PTH components or various materials in proper containers
● MIX 598
450 reels with diameter 7" and height 8mm; 148 trays for reels with diameter up to 15" and height up to 12 mm or tray for QFP/BGA
● Ext. dimensions: 1.780 x 1.190 x H 2.663mm
● Weight: 371kg
