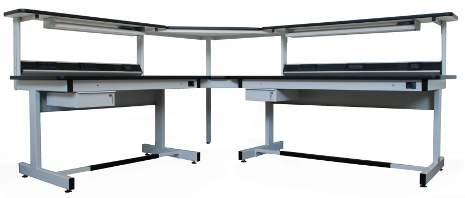

The corner modules are available in 2 versions: with and without shelf.
The structure is on strong steel pipes, the working plan and the shelf are clipboard made, both 30 mm thick and can be faced on both sides with high resistance antireflection melamine or, on ESD version with 108 Ohm resistivity static dissipative laminate, flat antistatic black PVC edge trims.
The standard working height under the shelf is 450 mm.
Light grey RAL 7035 powder painting.
Part number |
Description |
100.500 |
Corner for table IRON model, depth of the table 800 mm |
100.500A |
Corner for table IRON model, depth of the table 800 mm ESD |
101.500 |
Corner for table IRON model, depth of the table 900 mm |
101.500A |
Corner for table IRON model, depth of the table 900 mm ESD |
Part number |
Description |
100.600 |
Corner for table IRON model, depth of the table 800 mm with shelf P=350 mm |
100.600A |
Corner for table IRON model, depth of the table 800 mm with shelf P=350 mm ESD |
101.600 |
Corner for table IRON model, depth of the table 900 mm with shelf P=350 mm |
101.600A |
Corner for table IRON model, depth of the table 900 mm with shelf P=350 mm ESD |
Part number |
Description |
100.601 |
Corner for table IRON model, depth of the table 800 mm with shelf P=400 mm |
100.601A |
Corner for table IRON model, depth of the table 800 mm with shelf P=400 mm ESD |
101.601 |
Corner for table IRON model, depth of the table 900 mm with shelf P=400 mm |
101.601A |
Corner for table IRON model, depth of the table 900 mm with shelf P=400 mm ESD |
Download the complete catalog of the tables
