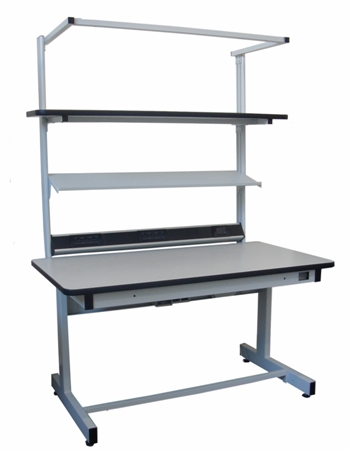

Tables for laboratory - IRON Model




The table IRON model is built with a strong bearing structure of steel pipes 80 x 40x 2 - 40 x 40 x 2 mm and a stiffening system ensures its perfect stability. The clipboard work top can be faced on both sides with high resistance anti-reflection melamine laminate, or in ESD version with static dissipative laminate, 108 Ohm resistivity, flat antistatic black PVC edge trims and two sockets for the connection of the antistatic wrist strap on the front board.
Table height 820mm from ground plane.
Standard equipment: footrest bar, adjustable supporting feet, light grey RAL 7035 powder painting. The front board is equipped to house 3 bypass sockets (optional). Available in other colors on request and customized wiring systems.
The electrification is certified and responds to "Law Voltage Directive" (73/23/CEE and 93/68/CEE.





Tables for laboratoires







Work top lenght
Depth
800 mm
Depth
900 mm
1200
100.120
101.120
1300
100.130
101.130
1400
100.140
101.140
1500
100.150
101.150
1600
100.160
101.160
1700
100.170
101.170
1800
100.180
101.180
1900
100.190
101.190
2000
100.200
101.200

  • Tables height 820mm customised on request
  • N.B. Add suffix "A" for ESD version
  •



Options for IRON table
